Hybrid Stepper Motor
M-34 NEMA 34 6.3 A 1.8° Stepper Motor
Robust maintenance-free rotary NEMA 34 2-phase hybrid stepper motor. This motor has a high power density and is capable of high microstep resolution and quiet operation with minimal resonance when paired with our MForce or discreet PCB mount drive products. Options include double shaft or incremental encoder.
- Motor size: NEMA 34 (85 mm)
- Holding Torque range: 419 to 1203 Oz-in / 296 to 920 N-cm
- Current: 6.3 amps

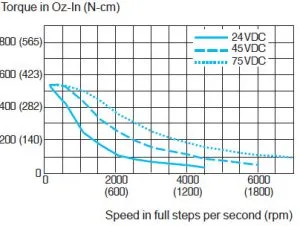

100% current with damper simulating load.
|Performance||notes||Single Length||Double Length||Triple Length|
California Residents – Click here for Proposition 65 warning

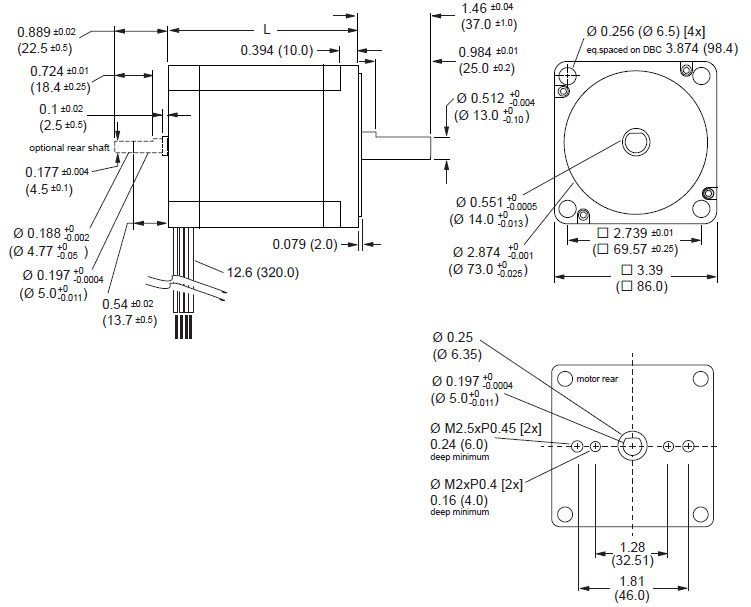

Wiring & Mechanical
Dimensions are in inches (mm)
|Length||L dimension – inches (mm)|
Documents & Downloads
Firmware - Released
User Interface Software
Recommended stepper motor drivers
